Default Fisher M-Scope coil connector wiring diagram

Just purchased an 11" coil from classifieds for Dads old 1265X. More of a "nostalgia" reason than anything else.

Let me begin saying, I got exactly what I'd purchased, so none of this is a complaint:

USPS delivered it, and when he handed me the box, I thought it was full of bricks I weighed the coil, and it comes in at 4.5 POUNDS

I won't be swinging this alot!

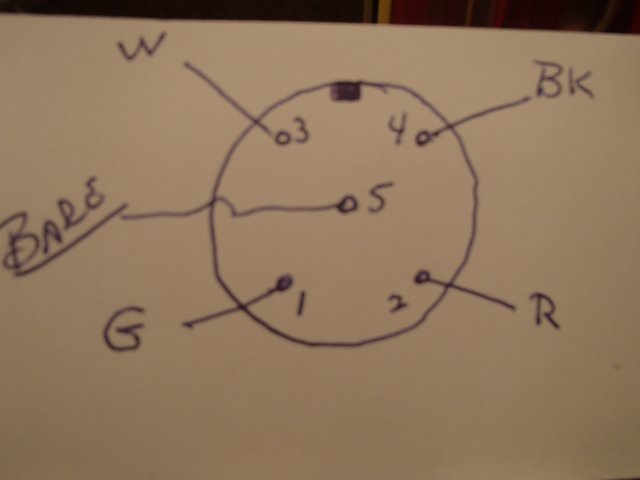

Anyway, purpose of this post is the fact that the coil came with a 25' cable. Yes 25 FEET. I have no idea as to why so long, but I chopped well over 20' off of it, and thought in the process I'd post the wiring to connector diagram, in the event someone needed it.

Here it is:


Before, you can see the coil of removed cable to the left:

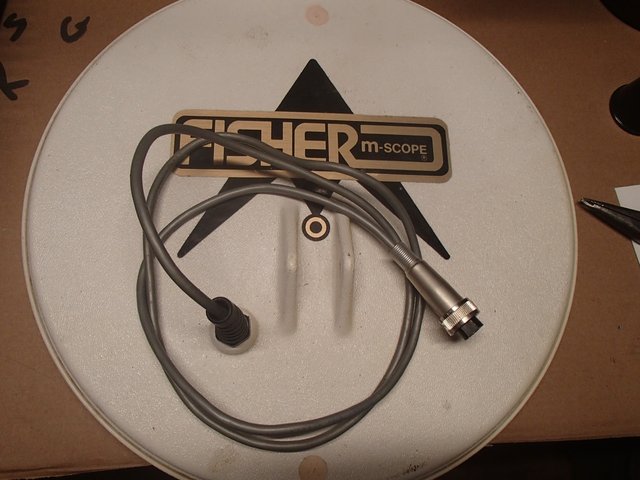

Done:
